Compare CalfMilp with LogisticRegression

A comparison of LogisticRegression and CalfMilp over 20 synthetic classification problems

finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished
finished

import numpy as np
import pandas as pd
from matplotlib import pyplot as plt
from sklearn.datasets import make_classification
from sklearn.linear_model import LogisticRegressionCV
from sklearn.metrics import accuracy_score, roc_auc_score
from sklearn.preprocessing import StandardScaler

from calf_milp import CalfMilp

methods = [
    ('Logit', LogisticRegressionCV()),
    ('CalfMilp', CalfMilp())
]

score = {}
for desc, _ in methods:
    score[desc] = {}
    score[desc]['AUC'] = []
    score[desc]['Accuracy'] = []

rng = np.random.RandomState(11)
for _ in range(20):
    # Make a classification problem
    X, y_d = make_classification(
        n_samples=50,
        n_features=10,
        n_informative=5,
        n_redundant=2,
        n_classes=2,
        hypercube=True,
        random_state=rng
    )
    scaler = StandardScaler()
    X_d = scaler.fit_transform(X)

    for desc, clf in methods:
        lp = clf.fit(X_d, y_d).predict_proba(X_d)
        auc = roc_auc_score(y_true=y_d, y_score=clf.fit(X_d, y_d).predict_proba(X_d)[:, 1])
        acc = accuracy_score(y_true=y_d, y_pred=clf.fit(X_d, y_d).predict(X_d))
        score[desc]['AUC'].append(auc)
        score[desc]['Accuracy'].append(acc)
        print('finished')

# compare the mean of the differences of auc
diff = np.subtract(score['Logit']['AUC'], score['CalfMilp']['AUC'])
df_describe = pd.DataFrame(diff)

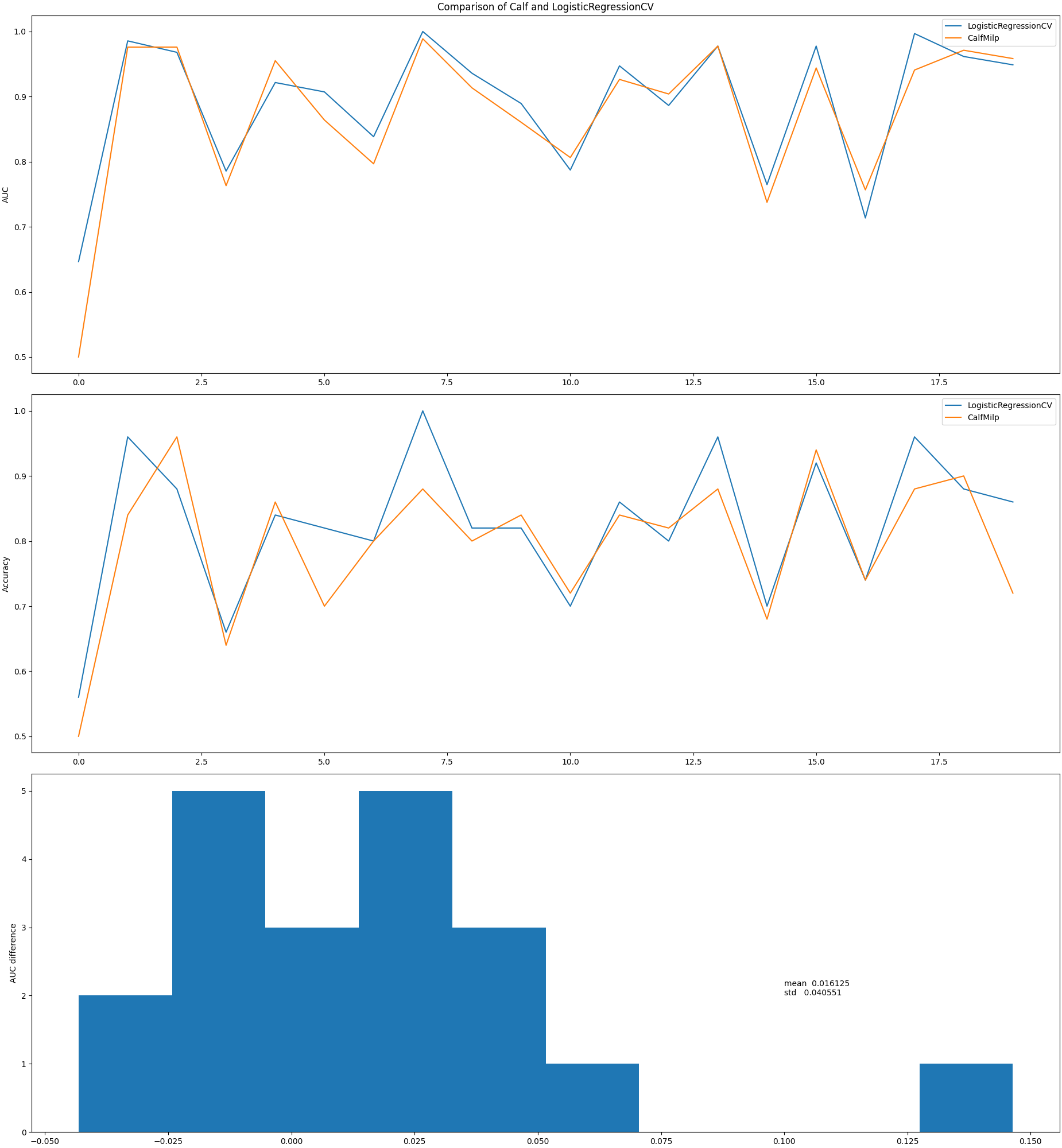

# plot the results
fig, axs = plt.subplots(3, 1, layout='constrained')
xdata = np.arange(len(score['Logit']['AUC']))
axs[0].plot(xdata, score['Logit']['AUC'], label='LogisticRegressionCV')
axs[0].plot(xdata, score['CalfMilp']['AUC'], label='CalfMilp')

axs[0].set_title('Comparison of Calf and LogisticRegressionCV')
axs[0].set_ylabel('AUC')
axs[0].legend()

axs[1].plot(xdata, score['Logit']['Accuracy'], label='LogisticRegressionCV')
axs[1].plot(xdata, score['CalfMilp']['Accuracy'], label='CalfMilp')
axs[1].set_ylabel('Accuracy')
axs[1].legend()

axs[2].hist(diff)
axs[2].set_ylabel('AUC difference')
stats = pd.DataFrame(diff).describe().loc[['mean', 'std']].to_string(header=False)
axs[2].text(.1, 2, stats)
fig.set_size_inches(18.5, 20)
plt.show()
